- High-pressure, lightweight hydraulic hand pump with a hydraulic cylinder for lifting, bolting, or applying pressure
- Includes a single-acting, 10-ton capacity, general purpose cylinder
- Internal pressure relief valve protects against overloading the pump
- Two-speed operation requires fewer handle strokes than single-speed hydraulic hand pumps
- First-stage pressure rating of 200 psi and second-stage pressure rating of 10,000 psi
The Enerpac SCR-102H single-acting cylinder pump set includes the P-392 lightweight two-speed hydraulic hand pump and a RC-102 ten-ton capacity general purpose hydraulic cylinder for lifting, bolting, or applying pressure in intermittent and non-repetitive construction, manufacturing, and maintenance and repair applications. The P-392 hand pump has an internal pressure relief valve that protects against overload. The nylon-covered aluminum base, glass-filled nylon reservoir, and fiberglass handle provide corrosion resistance and are lighter than steel hydraulic hand pumps. The two-speed pump requires fewer handle strokes to move a load than a similarly rated single-speed pump, increasing productivity. The handle locks into place for secure transport. The set also includes a 6’ safety hose, a 10-ton hydraulic force and pressure gauge, and 1/2" gauge adaptor to connect to the pump’s 3/8" National Pipe Taper (NPT) threads port.
Specifications
Set capacity 10 ton Cylinder2.13 inches stroke
4.78 inches collapsed height
Pump200 pounds per square inch (psi) first stage maximum operating pressure
10,000 psi second stage maximum operating pressure
0.687 cubic inch per stroke first stage maximum oil displacement
0.151 cubic inch per stroke second stage maximum oil displacement
55 cubic inches usable oil capacity
0.5 inch piston stroke
93 lb. maximum handle effort
9 lb. weight
7 x 21 x 4.75 inches (H x W x D) dimensions
H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from back to front.
Hydraulic pumps lift, bolt, or apply pressure to objects by pressurizing and moving hydraulic fluid. A hydraulic pump consists of a base, a reservoir that holds hydraulic fluid, and an operating mechanism, such as a handle or foot pedal, an electric motor, compressed air, or a gasoline engine. When the operating mechanism is activated, pressurized hydraulic fluid from the reservoir is delivered through an attached hose to a hydraulic cylinder. The pressurized hydraulic fluid in the cylinder lifts the cylinder’s piston, which in turn lifts the load. Hydraulic hand pumps are usually made of steel, or aluminum and nylon, and can be single-speed or two-speed. They are used in a wide range of applications, such as construction, manufacturing, and maintenance and repair applications in both industrial and home settings.
Enerpac manufactures industrial hydraulic equipment for lifting, workholding, and other applications, and provides integrated lifting solutions for bridge construction, mining, shipbuilding, and other industries. The company, founded in 1959, is headquartered in Menominee Falls, WI.

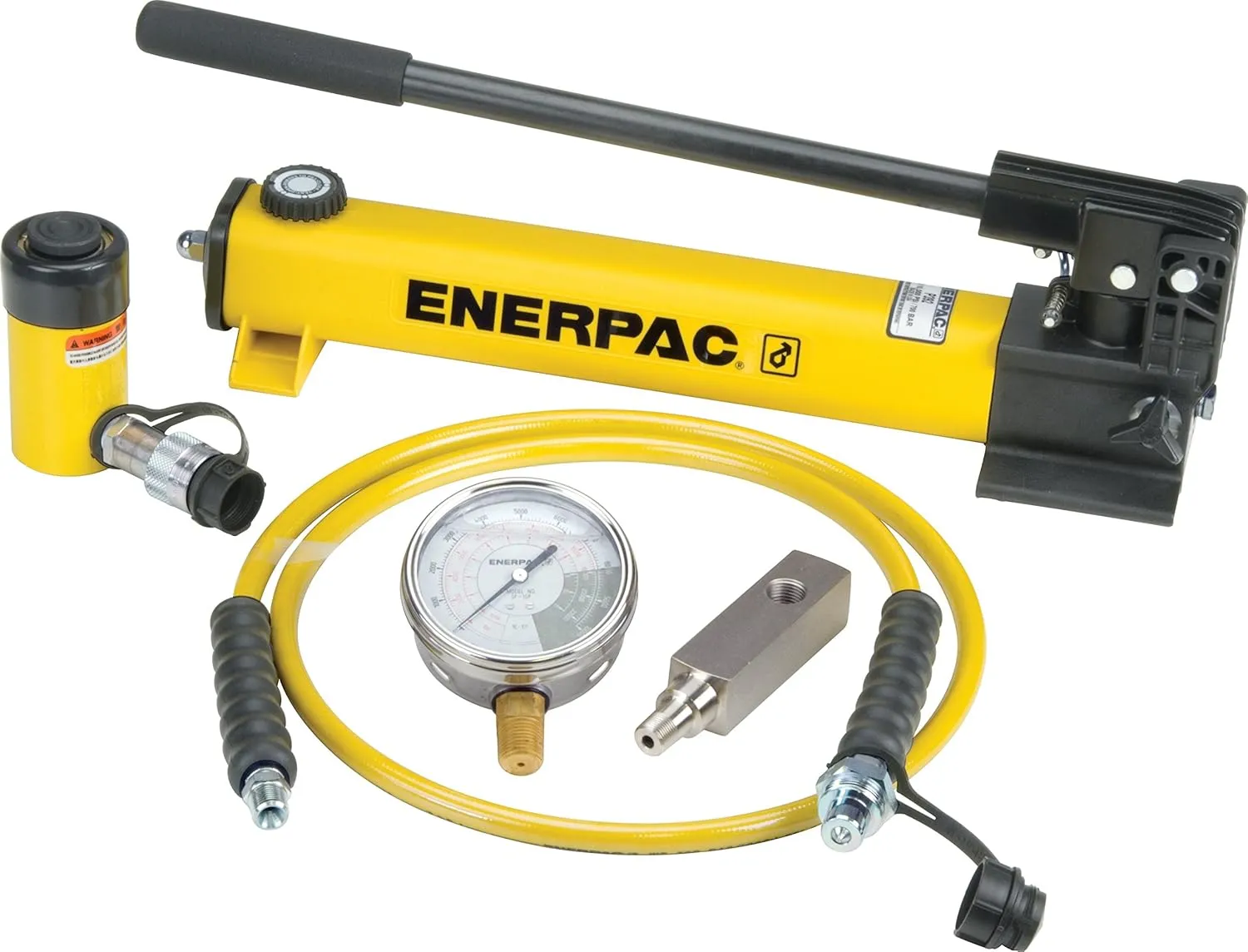

What’s in the Box?
- P-392 hydraulic hand pump
- RC-102 hydraulic cylinder
- HC-7206 safety hose (6’ length)
- GF-10P 10-ton hydraulic force and pressure gauge
- GA-2 1/2” gauge adaptor
- Is Discontinued By Manufacturer : No
- Product Dimensions : 24 x 13 x 9 inches; 24.1 Pounds
- Date First Available : October 9, 2008
- Manufacturer : Enerpac
