- Motor: 5 HP, 220V, single-phase, TEFC, 3,450 RPM
- Main Blade: Diameter 10-Inch, Arbor Speed 4000 RPM, Arbor Diameter: 5/8-Inch; Scoring Blade: Diameter 3-1/8-Inch, Arbor Diameter 22mm, Arbor Speed 8000 RPM
- Table size with extension wings: 47-Inch L by 40-Inch W, Sliding table size: 63-Inch L by 12-1/4-Inch W
- Max. dado width: 13/16-Inch, Max. depth of cut at 90 Degree 3-1/8-Inch, at 45 Degree 2-1/4-Inch
- Max. crosscutting width with crosscut fence: 78-1/2-Inch, Max. crosscutting length with crosscut fence: 63-Inch

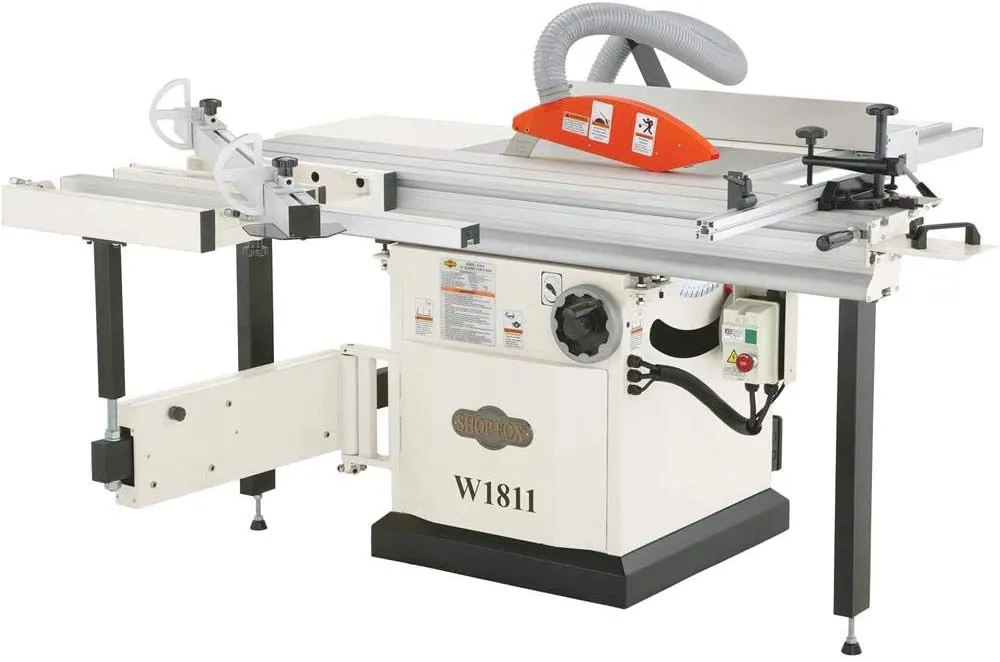

The Shop Fox 10in. Sliding Table Saw is designed for cutting wide panels with ease and accuracy. It features a scoring blade to eliminate cross grain tear-out, a 63in. long crosscut capacity and a fully adjustable miter fence with 2 swing stops. Other features include an adjustable extruded fence, an adjustable riving knife and a large blade guard with integral dust port. This saw makes quick work of all standard plywood panels. Accepts 10in. saw blades with 5/8in. arbor bores.
